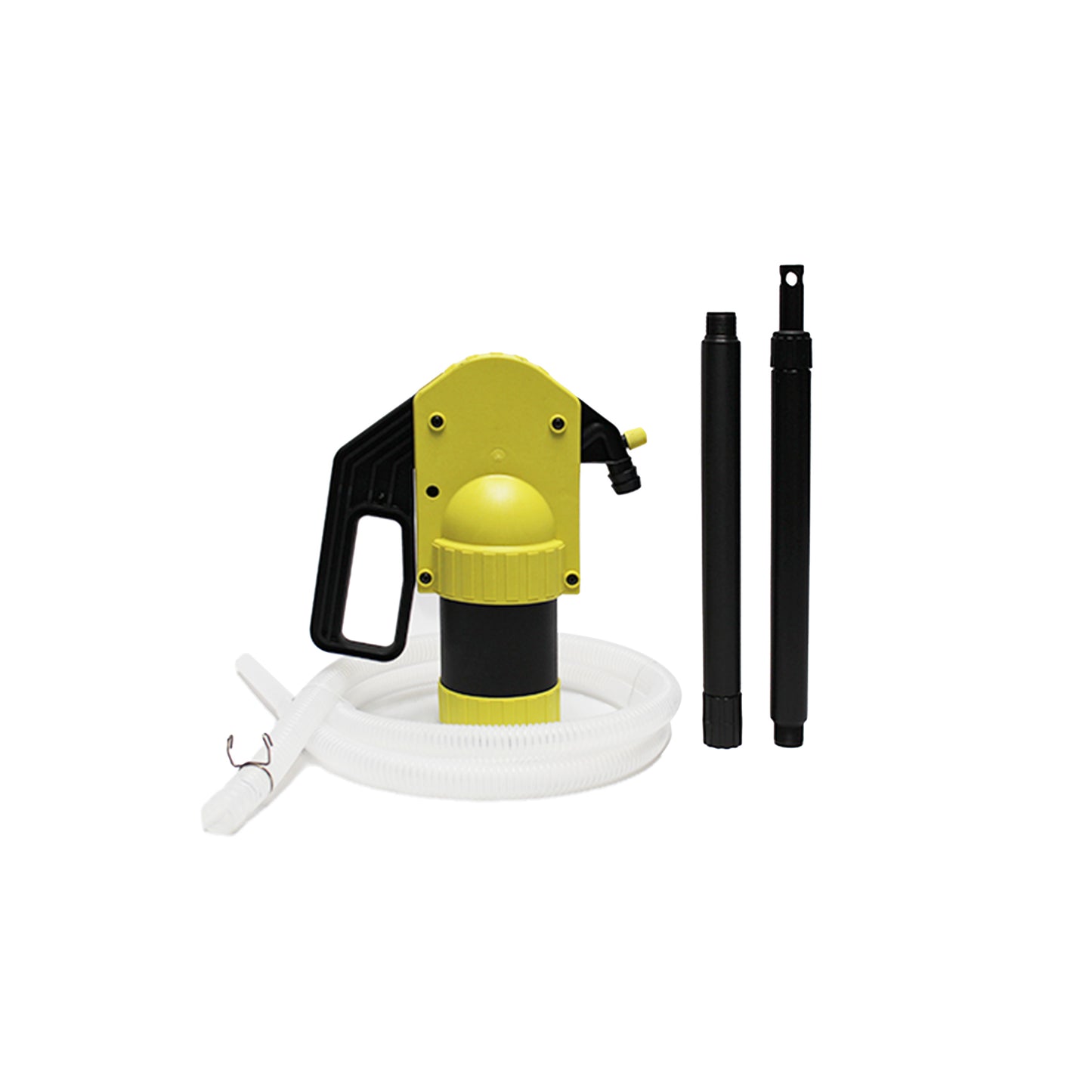

Manual Lever Drum Pump

Manual Lever Drum Pump is constructed with innovative design and features to improve the operational inconvenience of conventional cast iron rotary drum pump.

Applications & Features

• Suction Type: Manual up and down piston lever type
• Applicable Liquids : Kerosene, Diesel, DEF(Adblue), Water, Antifreeze, Windshield Washer Fluids, Mild Detergents, Agricultural Chemicals, Lubricants, Light Oils
• A unique toggle mechanism is incorporated in the handle linkage to correct piston shaft geometry to create smooth operation and also prevent premature piston shaft seal failure.
• 2" Drum bung adaptor with lock nut.
• DO NOT use this pump for transferring the following liquids
• Acetone
• Benzene
• Creosol
• Ethyl
• Phenol
• Methyl Ethyle
• Gasoline
• Concentrated Acids (Sulfuric Acid, Nitric Acid, Hydrochloric Acid)

Specifications

• Three-piece telescopic suction pipe adjustable from 350mm to 980mm to fit most containers
• Discharge Hose Length : About 2 Meters (6.6ft)
• Discharge Hose Outer Dia. : 20 mm (0.79")
• Delivery Volume : About 530ml per stroke
• Main Material : Polypropylene, POM, NBR
• Net Weight/pc : About 980g
